Name: Fourstroke R 01 Frameset
Brand: BMC
SKU: 30008502
Price: 5499.0 EUR
Availability: InStock

Lightweight Carbon VAR0

Full factory possibilities for a race-winning privateer, your ultimate carbon mountain bike starts here.

EUR 5.499,00

SKU: 30008502

Size —

Low stock - 5 items left
Inventory on the way

Compatible Parts & Accessories

Check for availability within our Retailer Network

[{"id":56310529261954,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30008502","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fourstroke R 01 Frameset - S","public_title":"S","options":["S"],"price":549900,"weight":9,"compare_at_price":549900,"inventory_quantity":5,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906538975","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310529294722,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30008503","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fourstroke R 01 Frameset - M","public_title":"M","options":["M"],"price":549900,"weight":9,"compare_at_price":549900,"inventory_quantity":3,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906538982","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310529327490,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30008504","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fourstroke R 01 Frameset - L","public_title":"L","options":["L"],"price":549900,"weight":9,"compare_at_price":549900,"inventory_quantity":3,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906538999","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310529360258,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30008505","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Fourstroke R 01 Frameset - XL","public_title":"XL","options":["XL"],"price":549900,"weight":9,"compare_at_price":549900,"inventory_quantity":4,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906539002","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

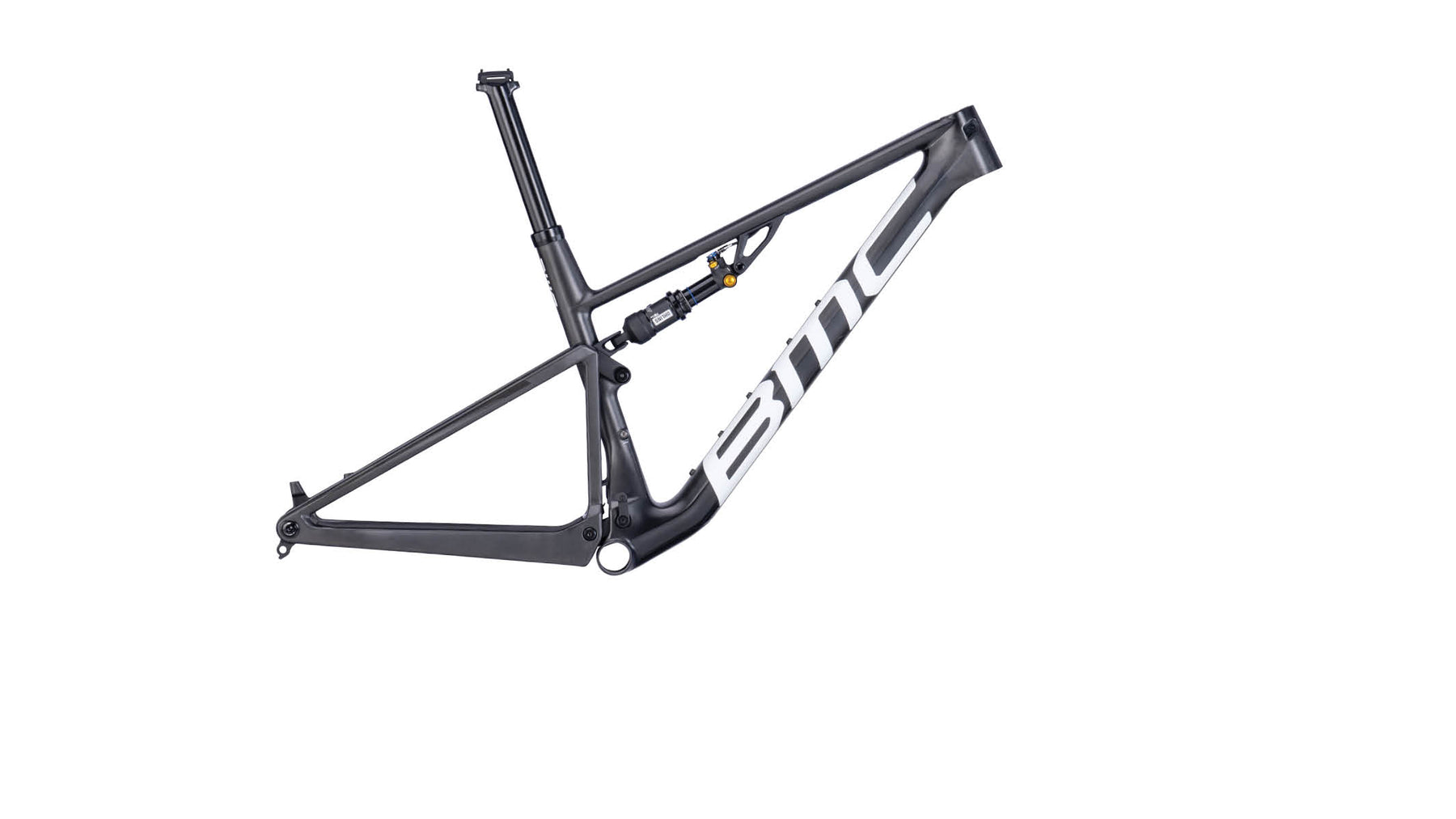

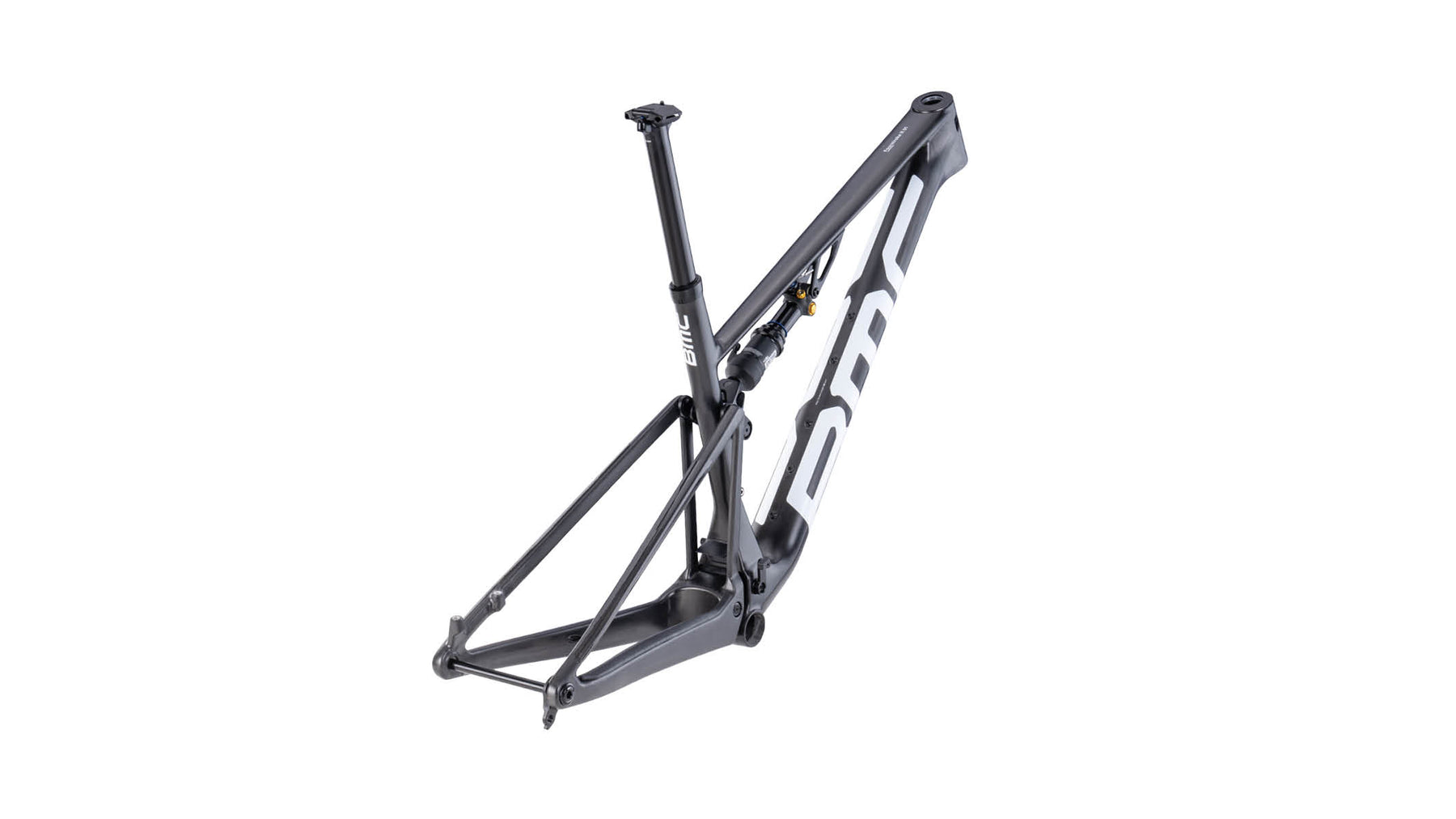

When race engineering meets full-gas fun, you get the Fourstroke R 01, our lightest full-suspension mountain bike frameset. Engineered in our Impec Lab and sharpened on the race circuit, this 01 Premium Carbon frameset floats up the climbs while progressive XC race geometry encourages you to charge downhill. But the real dark magic? APS suspension pivots tuned for maximum traction, paired with the ultra-efficient Autodrop integrated dropper seatpost. This frame-only variant comes ready for your dream XCO build. Raw carbon finish with removable decals means custom paint is easy and it includes the fully tunable Öhlins TXC2 Air rear shock. Now go crush it.

Technology

VAR0 colorway

Your lightweight custom project begins with this stripped-back clear-coat finish. A reset that gives you the freedom to ride it raw or add custom paint to create your own vision of speed.

Optimized APS Suspension

Adjusting suspension pivots boosts efficiency. The secret is in their placement, optimized for real riding performance. Designed in our Impec Lab and proven on the race track. Trust us: it’s easier to feel the speed than explain the magic.

Go Long

Go the distance with an XC frame engineered to take two full-size bottles and still clear 62 mm (2.4”) tires, a rarity for a platform this aggressive. And don’t take our word for it: its palmarès already proves the design works.

Autodrop Technology

Your secret weapon? A fully integrated automatic dropper post that lowers at the push of a button – no awkward squat required. More control, more speed, and more confidence on the most technical XC tracks.

Technical Overview

Frameset

Suspension

Rear Suspension:
Öhlins TXC2 Air | 190 x 45mm | DT Swiss Remote Lockout

Remote Lockout:
DT Swiss Double Stage Remote Lockout

Seat

Seatpost:
BMC Autodrop Integrated Dropper Seatpost | 80mm Drop

Drivetrain

Bottom Bracket:
Press-Fit 92mm MTB

Brakes

Rotor Size (F/R):
Rotor compatibility: 180mm rear

Accessories

In the Box:
SRAM UDH derailleur hanger | Headset including 2x10mm spacers

Additional Information

Tire Clearance:
62mm measured tire

Weight without Pedals:
3125g | Size M as pictured with all accessories

ASTM Classification:
Level 3

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L	XL
Rider Height	<172	172-182	180-188	>188
Reach	437	457	477	500
Stack	584	592	600	615
BB Drop	38	38	38	38
Fork Length	530	530	530	530
Fork Rake	44	44	44	44
Front Center	711	743	760	790
Head Tube	84	93	101	118
Head Tube Angle	66.5°	66.5°	66.5°	66.5°
Rear Center	431	431	431	431
Seat Angle	75.6°	75.6°	75.6°	75.6°
Seat Tube	420	440	470	490
Seatpost Drop	80	80	80	80
Seatpost Length	389	414	414	414
Seatpost Offset	0	0	0	0
Standover Height	727	727	727	727
Top Tube	576	599	623	651
Trail	115	115	115	115
Wheelbase	1140	1172	1189	1219
