Name: Trackmachine 01 FRS
Brand: BMC
SKU: 30005785
Price: 6999.0 EUR
Availability: OutOfStock

CARBON BLACK / WHITE

Trackmachine 01 Premium Carbon Frameset
Trackmachine 01 Steerer for standard stems
1"1/8 Steerer Shaft
Compatible with BMC Pursuit Base Bar

EUR 6.999,00

SKU: 30005785

Size —

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40926265671759,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30005785","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Trackmachine 01 FRS - S","public_title":"S","options":["S"],"price":699900,"weight":9000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512029","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926265704527,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30005786","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Trackmachine 01 FRS - M","public_title":"M","options":["M"],"price":699900,"weight":9000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512012","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926265737295,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30005787","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Trackmachine 01 FRS - L","public_title":"L","options":["L"],"price":699900,"weight":9000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906512005","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Trackmachine 01 FRS represents the pinnacle of track bike engineering, boasting a meticulously crafted design. In close development cooperation with Swiss Cycling athletes, this bike consistently delivers remarkable efficiency and adaptability. It seamlessly transforms to suit a variety of track disciplines. Constructed from high-grade carbon and thoughtfully engineered, it showcases the Trackmachine Halo fork with wide fork legs, adjustable steel rear dropouts, a threaded bottom bracket, and an Aero Seatpost. The frameset is compatible with any 1"1/8 stem and is as well compatible with the optional Trackmachine 01 Rotation Stem, while it's also compatible with the separately available BMC Pursuit Base Bar.

Technology

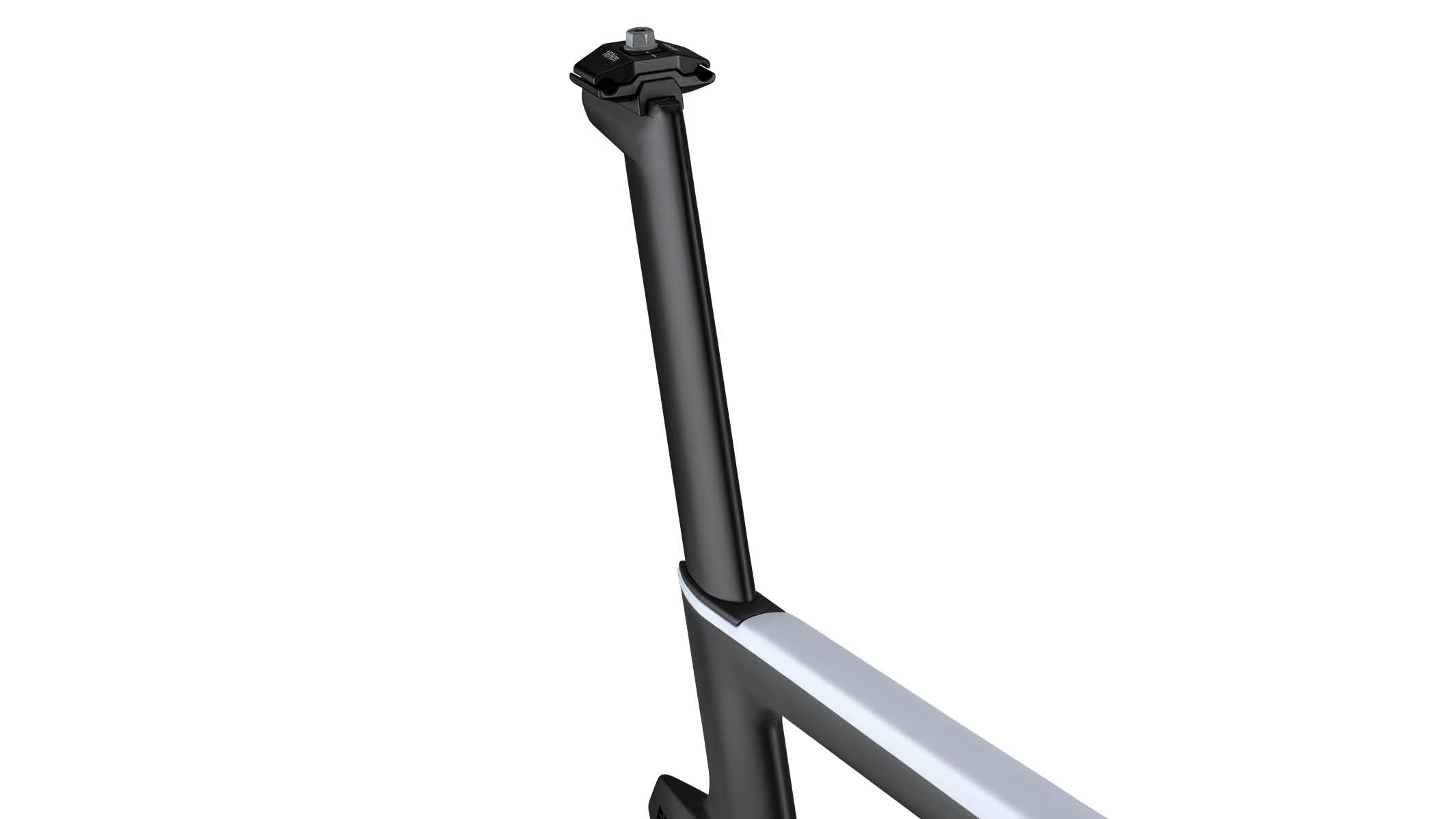

P2P Integrated Aero Seatpost

The P2P Integrated Aero Seatpost offers four different saddle attachment options for maximum rider position adjustability.

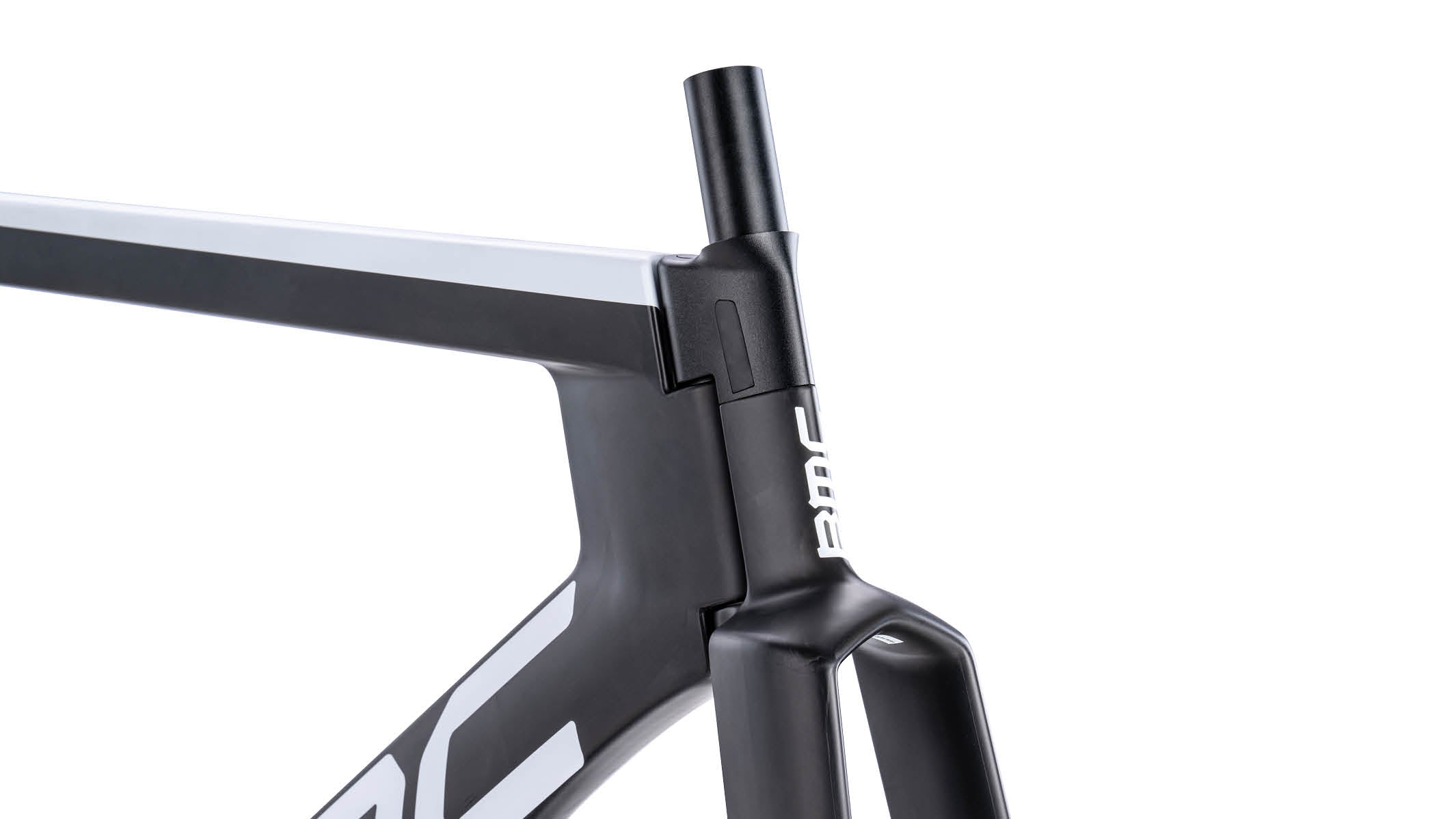

Trackmachine Halo Fork

The Trackmachine Halo Fork with its wide fork legs, effectively keeps turbulent air generated away from the front wheel, promoting a clean and streamlined airflow that leads to enhanced aerodynamic benefits.

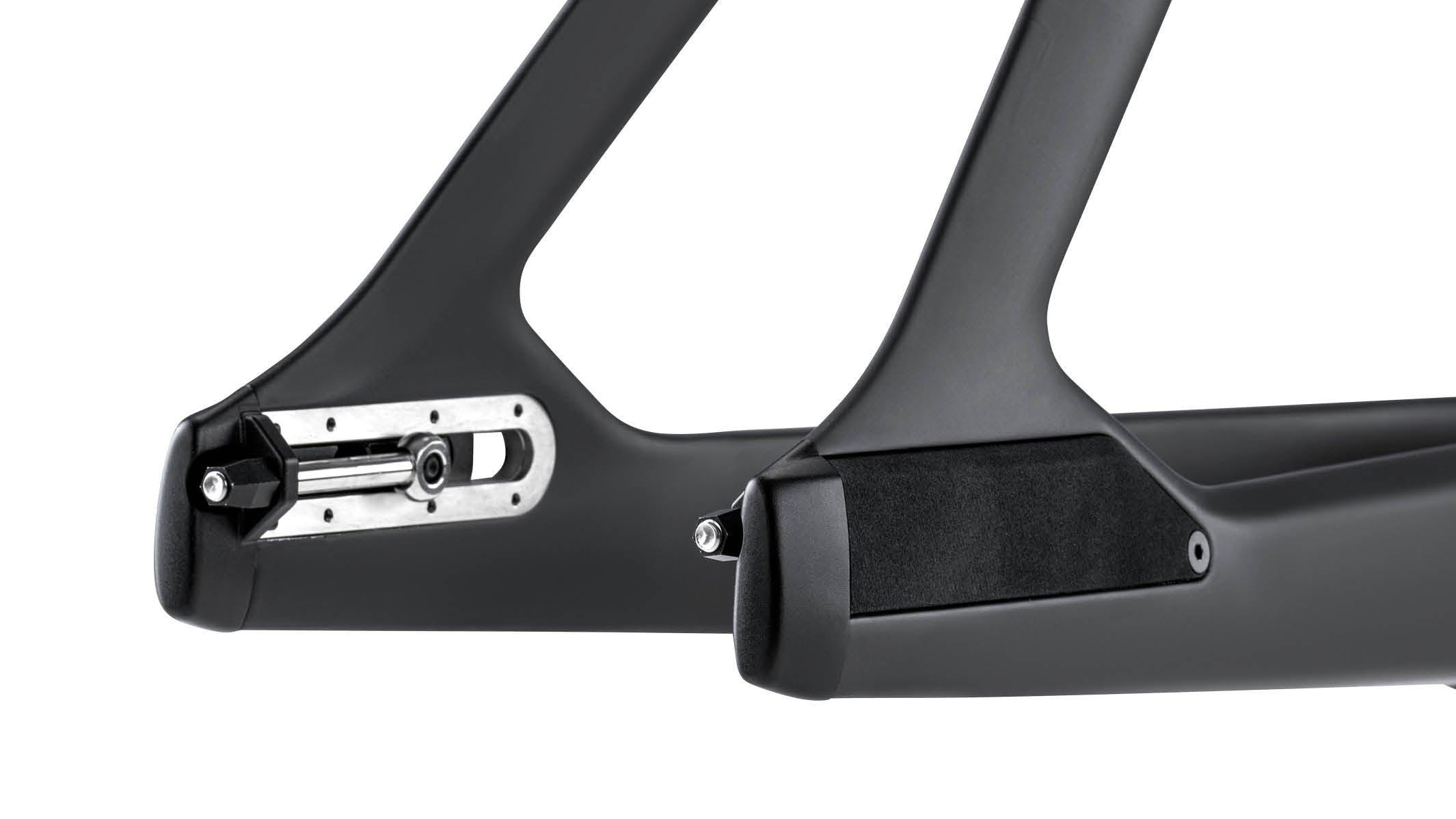

Adjustable Steel Dropouts

Long lasting, replaceable steel dropouts, paired with the dropout cover perfectly combine function and design integration.

The Perfect Fit

The Trackmachine is compatible with 1"1/8 stems. The optional Rotation Stem offers a wide range of adjustability for customized performance, The frame is fully compatible with the Pursuit Base Bar Cockpit, specifically designed for the Trackmachine 01.

Technical Overview

Frameset

Frame:
Trackmachine 01 Premium Carbon with Aero Design | Steel Sliding Dropout | Compatible to fit BMC Pursuit Base Bar (sold separately)

Fork:
Trackmachine 01 Premium Carbon with Aero Hinge-Design

Cockpit

Stem:
Stem not included. Compatible with standard 1"1/8 stem. Compatible with Trackmachine 01 Rotation Stem | Stem Length: 80mm (S), 100mm (M), 120mm (L)

Seat

Seatpost:
Trackmachine 01 Premium Carbon Aero Seatpost with P2P Positioning SyStem

Additional Information

Tire Clearance:
26mm

ASTM Classification:
Level 1

System Weight Limit:
150kg

Size	S	M	L
Rider Height	<173	170-185	>183
Reach	434	459	452
Stack	436	471	526
BB Drop	64	64	64
Fork Length	364	364	364
Fork Rake	45	45	45
Front Center	605	642	653
Head Tube	41.2	78	135
Head Tube Angle	72	72	72
Rear Center	375-444	375-444	375-444
Seat Angle	75.5	75.5	75.5
Seat Tube	484	521	577
Seatpost Length	383	383	383
Standover Height	747	782	837
Top Tube	554	588	596
Trail	60	60	60
Wheelbase	972-1042	1008-1078	1019-1089
